Current Transformer

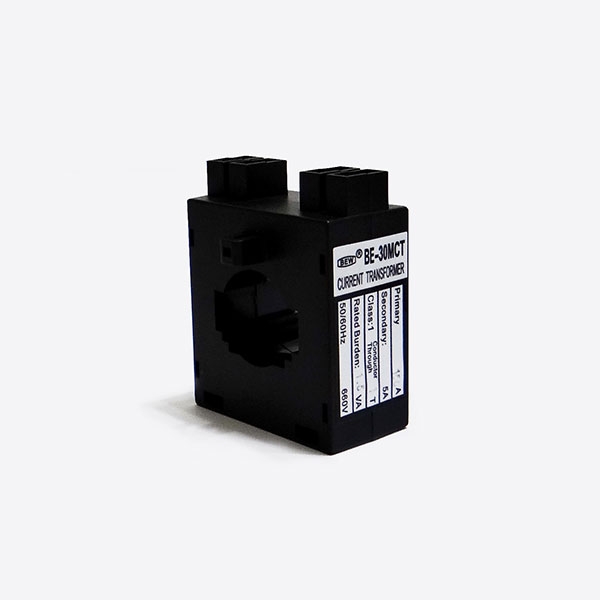

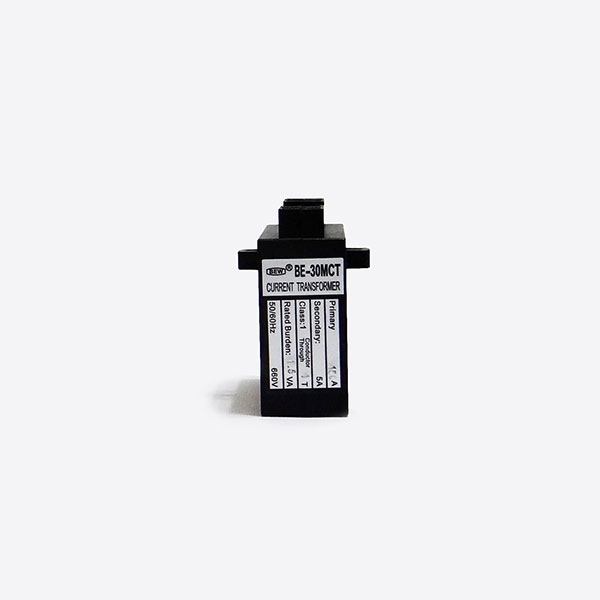

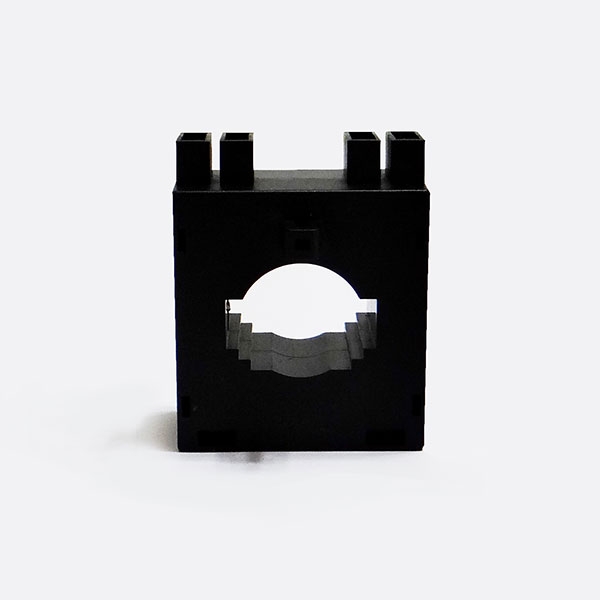

BE-30MCT
Specifications/Features :
| Model | BE-30CT |
|---|---|
| Rated Current (A) Primary/Secondary | 200/5A ~ 500/5A |
| Busbar Hole Dimension | 30 x 10 mm |
| Burden (VA) | 1.5 ~2.5 |
| Accuracy Class | 1.0 |
| Rated Voltage | 660V |
| Rated Frequency | 50/60Hz |

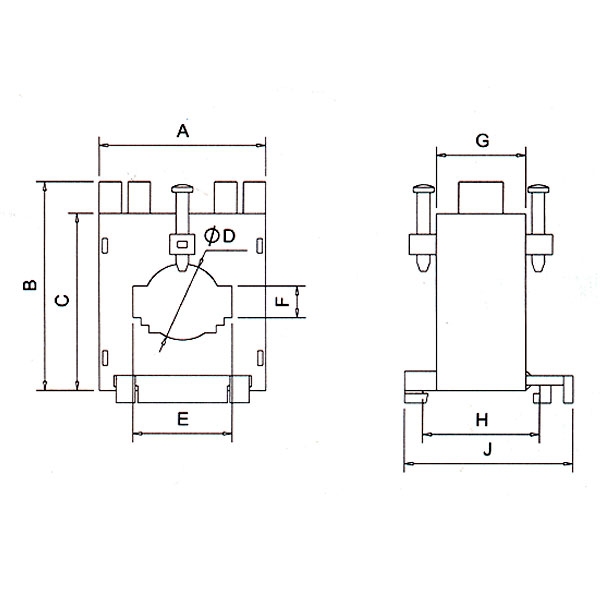

Size Chart(mm)
| Model | A | B | C | D | E | F | G | H | J |
|---|---|---|---|---|---|---|---|---|---|
| BE-30MCT | 53 | 66 | 57 | 22 | 31 | 10 | 28 | 36.5 | 53 |
