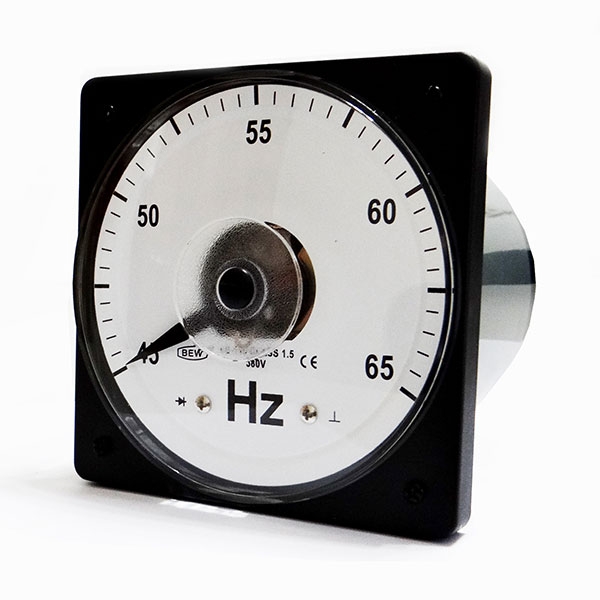

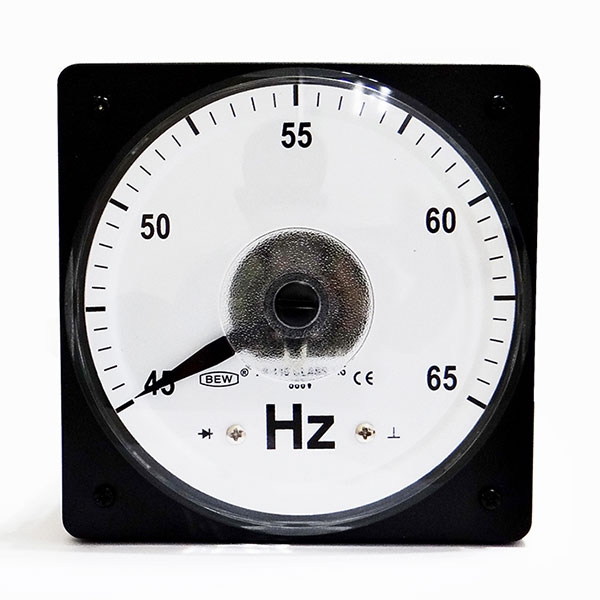

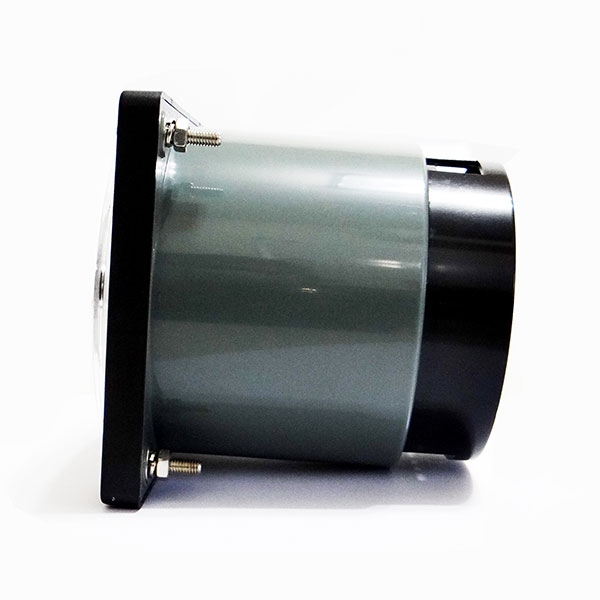

WideAngleScale Instrument
LS-110 45-65HZ 380V
Specifications / Features:
1. Accuracy: class 1.5
2. Full Scale Deflection: 250 degrees
3. Full Scale Length: 183mm (7 1/4inches)
4. Case and Compositon: acrylic resin cover, plstic meter body, bakelite terminal plate. Four stud mounting.
5. Colour: white scale plate, black terminal plate, greymeter body.
6. Pointer: sword type in black colour
General dimension:
LS-110 Hz: 110V, 220V, 380V, 500V
For a voltage rating higher than above, use an external Potential Transformer with a 110V instrument.
