Panel Meter

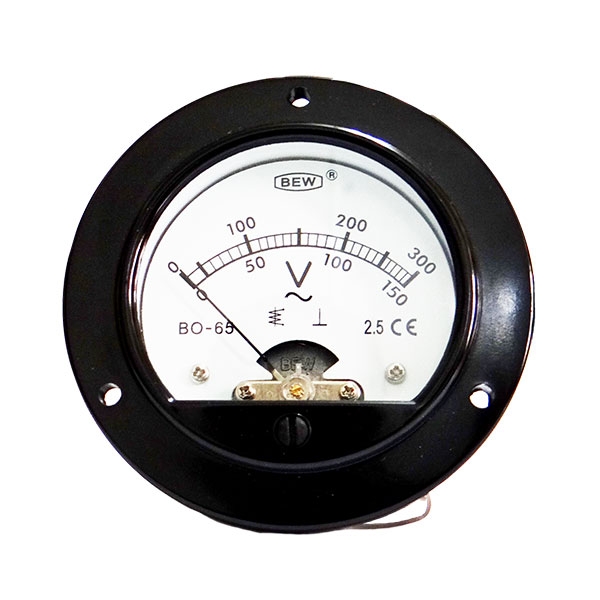

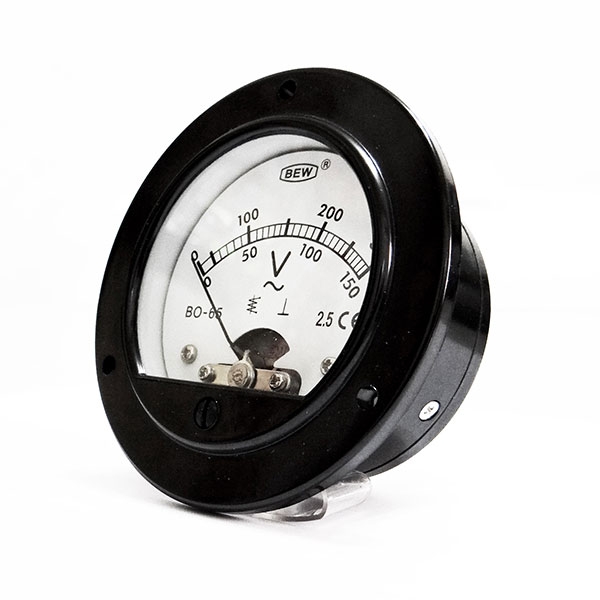

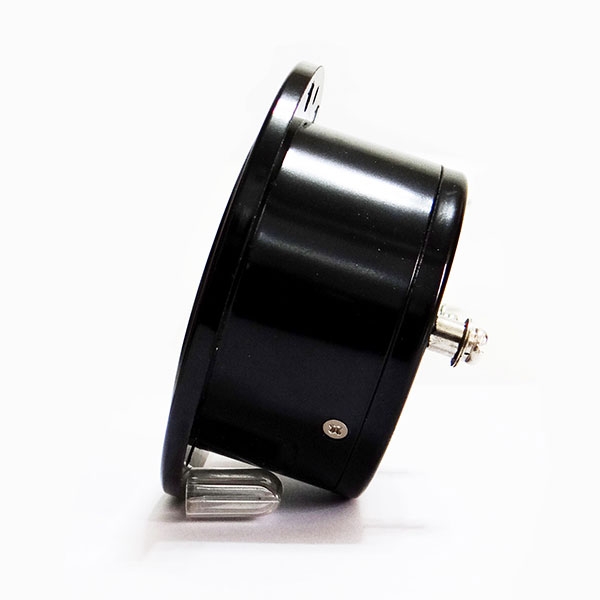

BO-65 AC 300V
Specifications/Features :
1. Case and Composition: Glass window and bakelite case for BO-65. Three stud mounting.
2. Color: black case, white scale plate
3. Pointer: tube or knif type, colour in black or red.
Measuring Range: (Accuracy: class 2.5)
| Model | Moving Iron Type | Moving Coil Type |
|---|---|---|
| BO-65 | 50mA - 50A AC 150V -500V AC | 50uA - 50A DC 1V - 1000V DC |
Size Chart(mm)
| Model | A | B | C | D | E | F | G | H | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BO-65 | 66 | 72.5 | 3 | 3.5 | 37 | 3.6 | 31.5 | 8.3 | 65 | 83 | 4.7 |
