Panel Meter

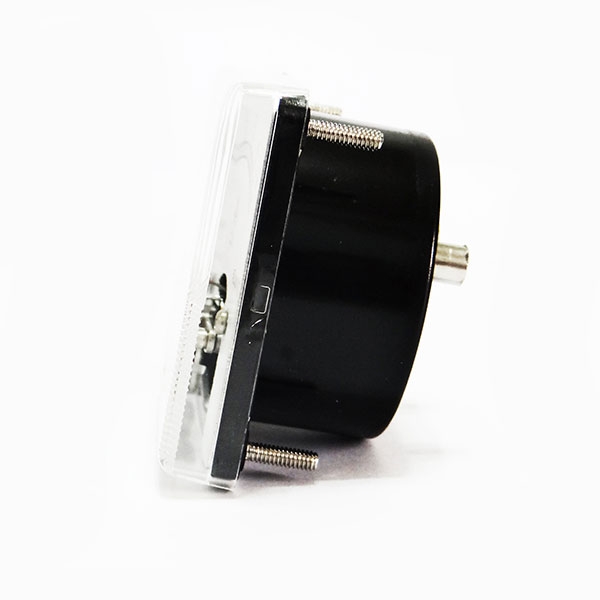

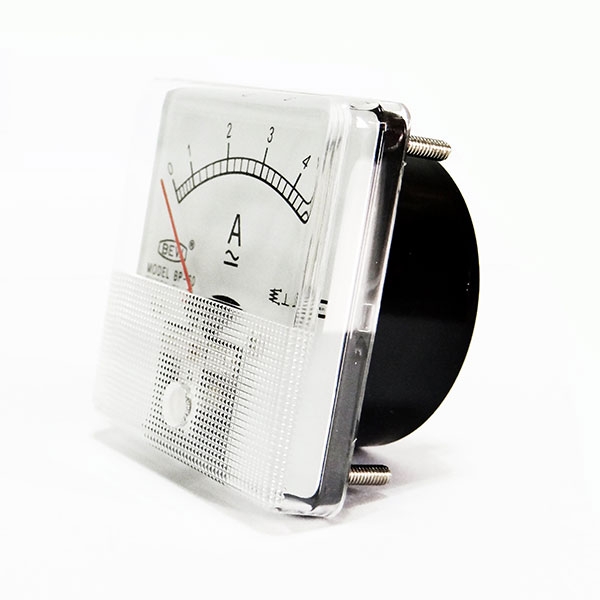

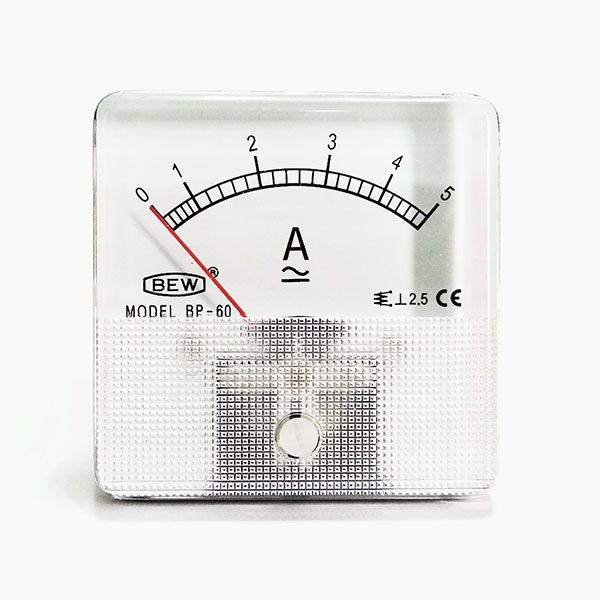

BP-60 AC 5A
Specifications/Features :
| Specification | Content |
|---|---|
| Moving coil type | 50 mA ~ 50A DC 3V ~ 1000V DC Accuracy: class 1.5, class 2.5 |
| Moving iron type | 50 mA ~ 50A AC 150V ~ 500V AC Accuracy: class 2.5 |
| Rectifier type | 3V ~ 500V AC Accuracy: class 2.5 |
Size Chart(mm)
| Model | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| BP-80 | 32.5 | 65 | 3.5 | 54 | 13.5 | 22 | 12 | 63.5 | 81 | 12 |
| BP-60 | 24 | 53 | 3.5 | 46 | 11 | 25.5 | 12 | 52 | 60 | 12 |
| BE-38 | 15.8 | 38 | 3.5 | 41 | 9.6 | 13.3 | 12 | 37.6 | 45 | 8 |
