Switchboard Meter

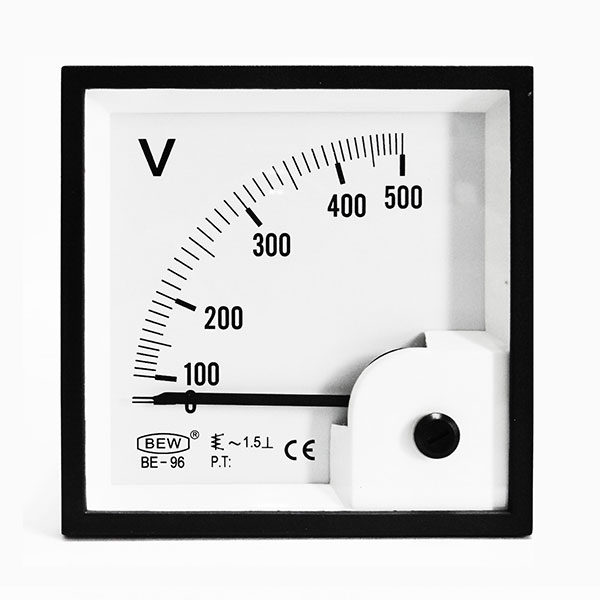

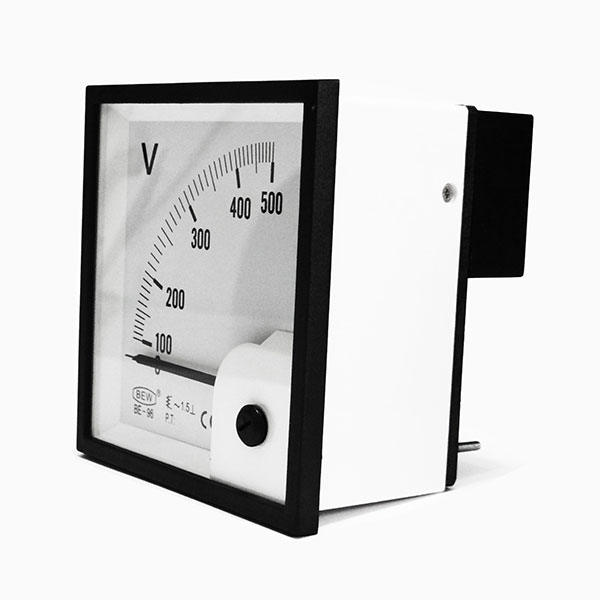

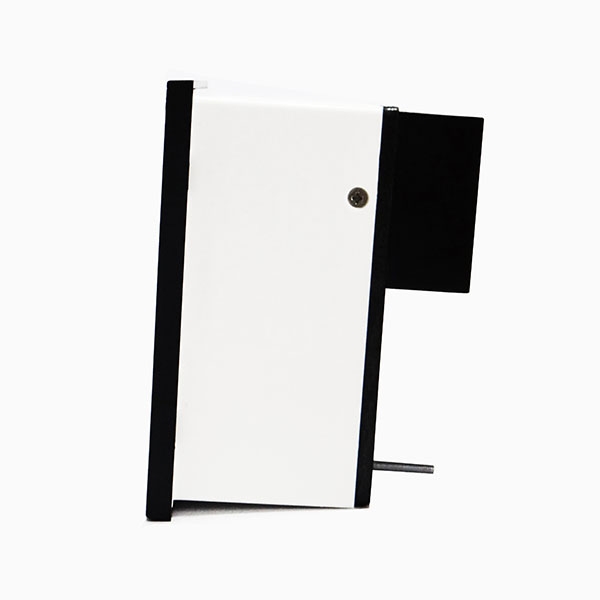

BE-96 AC 500V
Specifications/Features :
1. Composition: glass window, ABS resin frame and case, PC glass fiber base mounting
fittings included.
2. Colour: black base and frame, white scale plate and meter body.
3. Pointer: stick shape in black
colour.
BE series size table
Model | A | B | C | D | E | F | G | H | I | J | K |
---|---|---|---|---|---|---|---|---|---|---|---|
BE-120 | 116.5 | 120 | 66.5 | 8 | 44 | 14.5 | 13.5 | 112 | 60 | 22.5 | 8 |
BE-96 | 91 | 96 | 63.5 | 6 | 44 | 14.5 | 13.5 | 89.5 | 42 | 20.3 | 8 |
BE-80 | 76 | 80 | 57 | 6 | 36.5 | 14.5 | 13.5 | 75.5 | 24 | 17 | 4 |
BE-72 | 67.5 | 72 | 55.5 | 6 | 36 | 14.5 | 13.5 | 66 | 23.6 | 10 | 4 |
BE-48 | 45 | 48 | 55.5 | 6 | 36 | 14.5 | 13.5 | 43.5 | 15 | 10 | 4 |
