Switchboard Meter

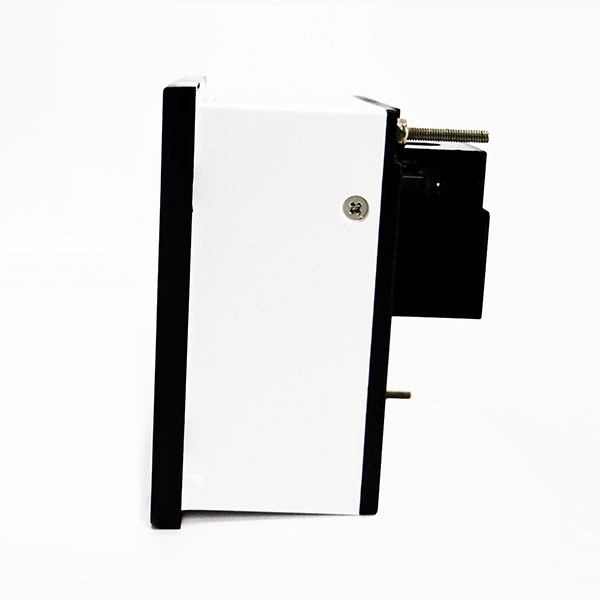

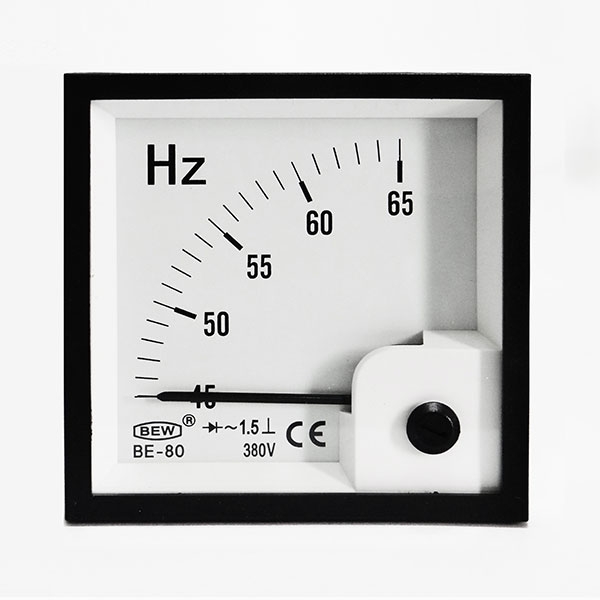

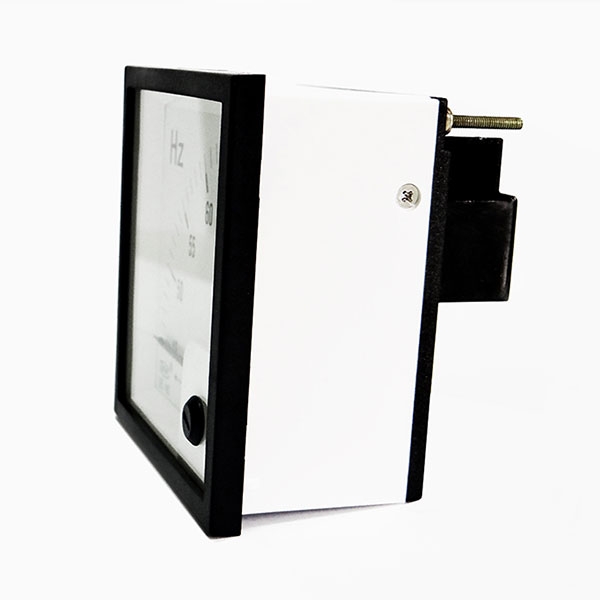

BE-80 45-65Hz 380V
Specifications/Features :
1. Composition: glass window, ABS resin frame and case, PC glass fiber base mounting
fittings included.
2. Colour: black base and frame, white scale plate and meter body.
3. Pointer: stick shape in black
colour.
BE-80 Hz Meter are suitable for frequency measurements of since form AC current networks and can be used in power engineering systems, power plants, switch and test rooms. They can be built in switchboards, measuring desks and electrical equipments.
| Specification | Content |
|---|---|
| Measuring Range | 45-65Hz |
| Accuracy | Class 2.5 |
| Rated Voltage | 380V |
| Limit of Voltage Fluctuation | +-20% |
| Consumption | Max. 15mA |
| Test Voltage | 2kV, 50Hz |
BE series size table
| Model | A | B | C | D | E | F | G | H | I | J | K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BE-120 | 116.5 | 120 | 66.5 | 8 | 44 | 14.5 | 13.5 | 112 | 60 | 22.5 | 8 |
| BE-96 | 91 | 96 | 63.5 | 6 | 44 | 14.5 | 13.5 | 89.5 | 42 | 20.3 | 8 |
| BE-80 | 76 | 80 | 57 | 6 | 36.5 | 14.5 | 13.5 | 75.5 | 24 | 17 | 4 |
| BE-72 | 67.5 | 72 | 55.5 | 6 | 36 | 14.5 | 13.5 | 66 | 23.6 | 10 | 4 |
| BE-48 | 45 | 48 | 55.5 | 6 | 36 | 14.5 | 13.5 | 43.5 | 15 | 10 | 4 |
