Timer
Timer

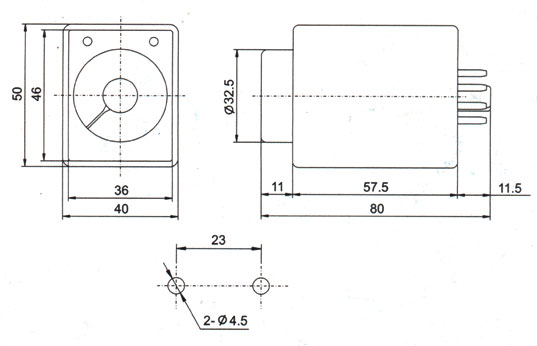

Dimensions:

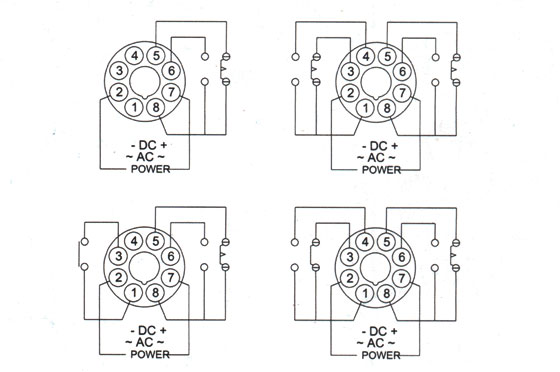

Connection diagram:
| Features | Miniature, High-performance IC Timer | |
|---|---|---|
| Timing range | 1.2S 6S 12S 30S 60S 1.2M 6M 12M 30M 60M 1.2H 6H 12H 30H 60H | |
| Rated Voltage | AC: 110 220 380V；DC:24V | |
| Indicator | On-up two indicator lamp | |
| Output contact | Delay 1C | Instant 1C |
| 5A 250VAC (resistive load) | 5A 250VAC (resistive load) | |
| Life | Mechanical | Electrical |
| 5,000,000 operations | 100,000 operations at rated load | |
| Accuracy | Repeat | Setting |
| Less than +- 1% of full scale | Less than +- 10% of full scale | |
| Voltage | Temperature | |
| Less than +- 1% | Less than +- 2% at 20°C | |
