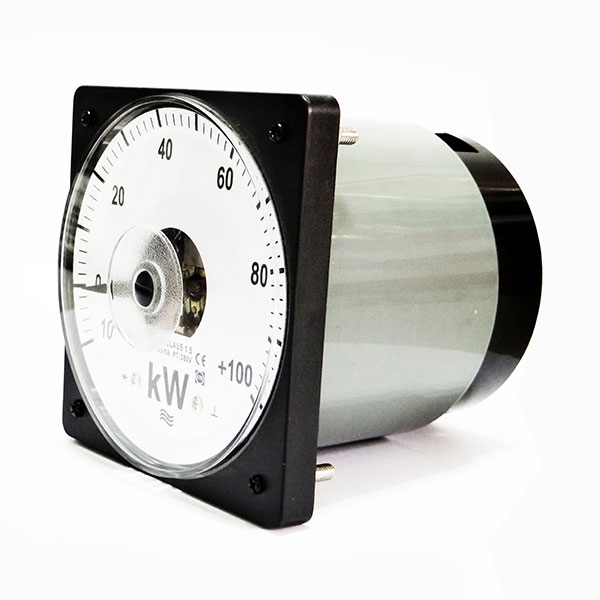

WideAngleScale Instrument
LS-110 3P3W 380V -10-0-100KW 150/5A
Specifications / Features:
1. Accuracy: class 1.5
2. Full Scale Deflection: 250 degrees
3. Full Scale Length: 183mm (7 1/4inches)

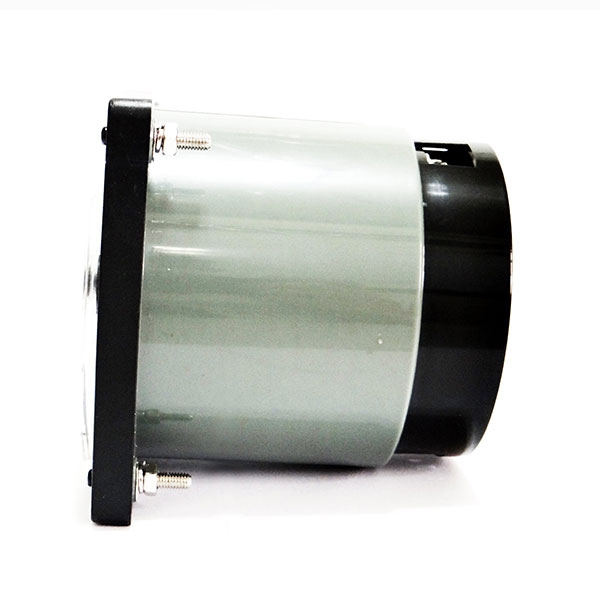

4. Case and Compositon: acrylic resin cover, plstic meter body, bakelite terminal plate. Four stud mounting.

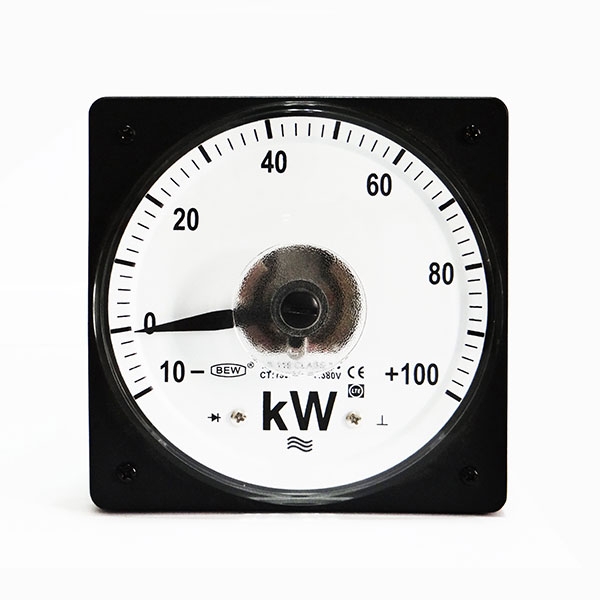

5. Colour: white scale plate, black terminal plate, greymeter body.
6. Pointer: sword type in black colour

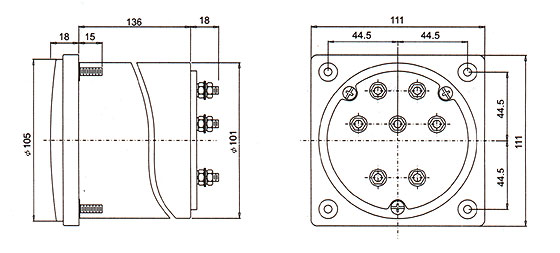

General dimension:
LS-110 kW: 110V, 220V, 380V, 500V. 1A, 5A.
For any rating other than listed above, use external Current Transformer and/or external Potential Transformer with a 110V/5A instrument.
