WideAngleScale Instrument

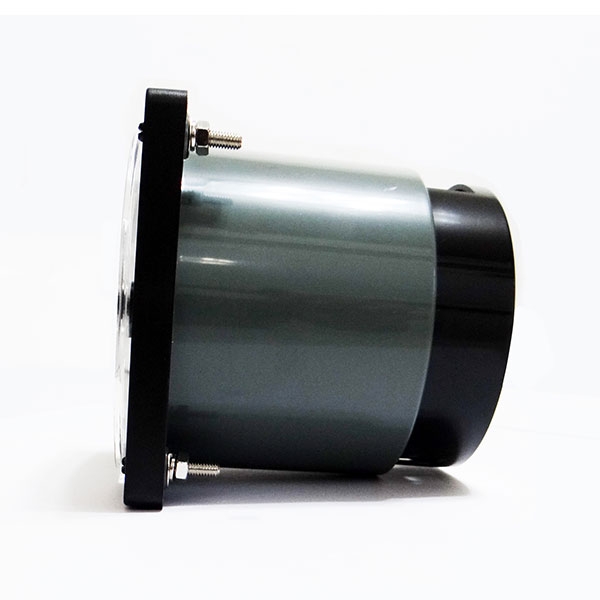

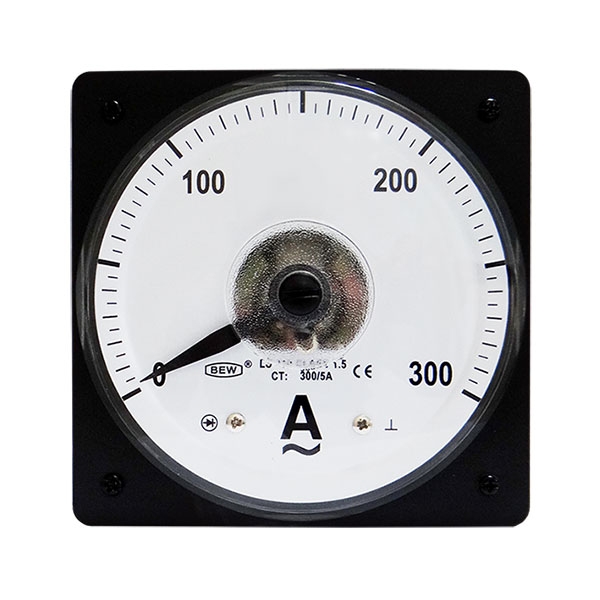

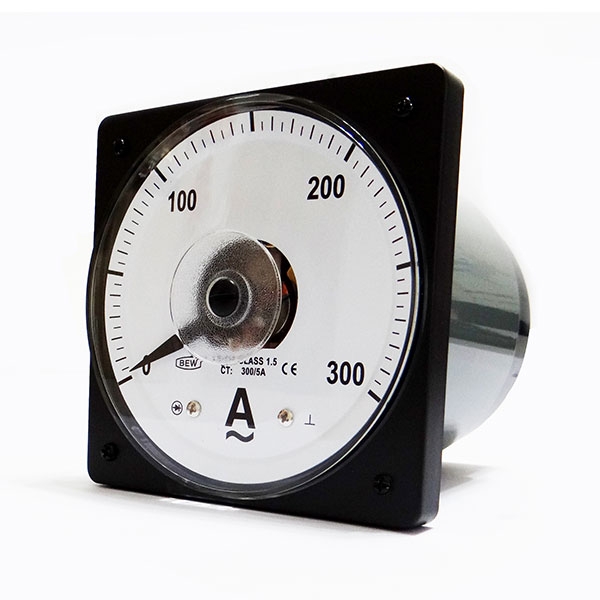

LS-110 AC 300/5A
Specifications / Features:
1. Accuracy: class 1.5
2. Full Scale Deflection: 250 degrees
3. Full Scale Length: 183mm (7 1/4inches)
4. Case and Compositon: acrylic resin cover, plstic meter body, bakelite terminal plate. Four stud mounting.
5. Colour: white scale plate, black terminal plate, greymeter body.
6. Pointer: sword type in black colour
General dimension:
| Measuring Ranges | |
|---|---|
| Moving Coil Type | 500uA-30A DC 30V -300V DC |
| Rectifier Type | 1A-5A AC 150V -600V AC |
1. For ranges higher than 30A DC, use external shunt with a 50 mV DC Ammeter.
2. For ranges higher than 300V DC, use external Multiplier with a 1 mA Voltmeter.
3. For ranges higher than 5A AC, use external Current Transformer with a 5A AC Ammeter.
4. For ranges higher than 600V AC, use external Potential Transformer with a 150V AC Voltmeter.
