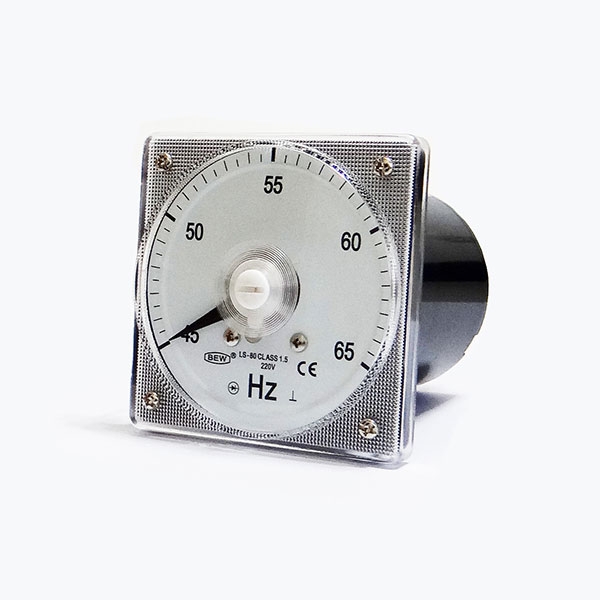

WideAngleScale Instrument

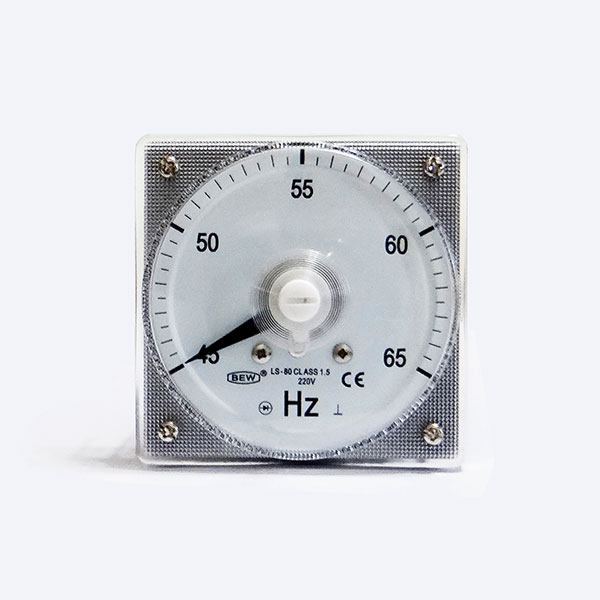

LS-80 45-65HZ 220V
Specifications / Features:
1. Accuracy: class 1.5

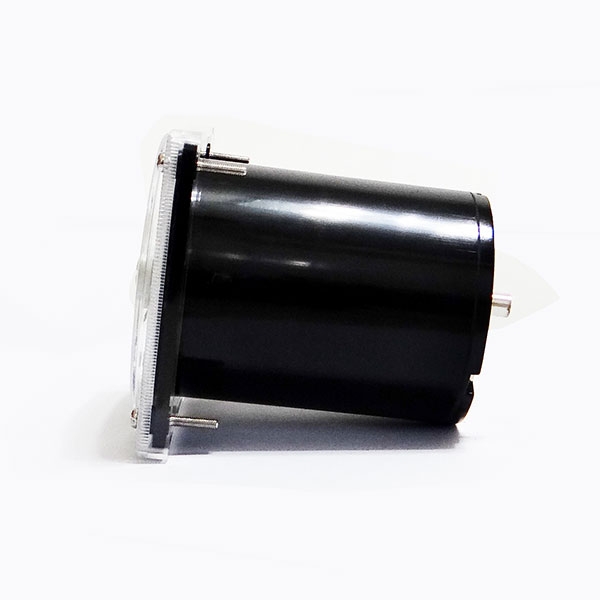

2. Case and compostion: Acrylic resin cover, plastic meter body, bakelite terminal plate. Four stud mounting.
3. Colour: White scale plate, black terminal plate, grey meter body.
4. Pointer: Sword type in black colour.
5. Full scale deflection: 250°
General dimension:
| Measuring Ranges | |
|---|---|
| Moving Coil Type | 1mA - 30A DC 30V -300V DC |
| Rectifier Type | 1A-5A AC 150V -600V AC |
LS-80 Hz: 110V, 220V, 380V, 500V
For a voltage rating higher than above, use an external Potential Transformer with a 110V instrument.
