Panel Meter

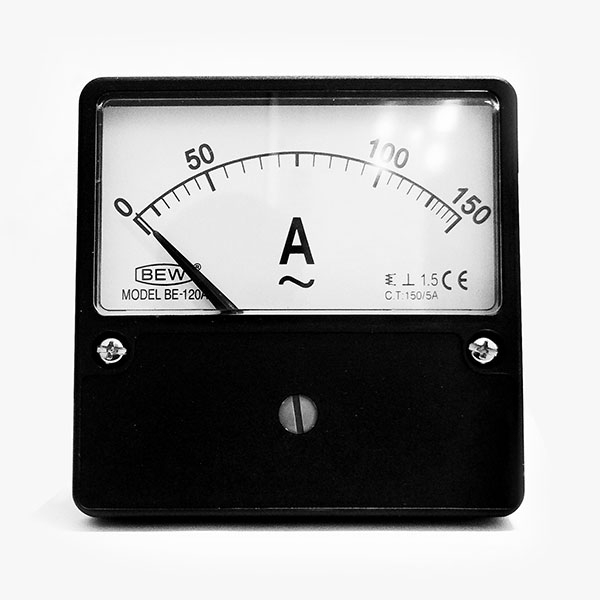

BE-120A AC 150/5A
规格 / 特性：
1. AC Ammeters above 100A require a basic 5A meter combined with an external CT.
2. AC Voltmeters above 600 Volts require a basic 150V meter combined an external PT.
| 规格 | 內容 |
|---|---|
| Accuracy | class 1.5 |
| Test Voltage | 2KV 50-60 c/s. |
| AC Ampere Overload Scale | 200%, 300%, 500% |
Moving Iron Type
| Classification | Range | |
|---|---|---|
| Voltmeter | 105V ~600V | |
| Ammeter | 400mA ~ 1A | 1A ~100A |
