Panel Meter

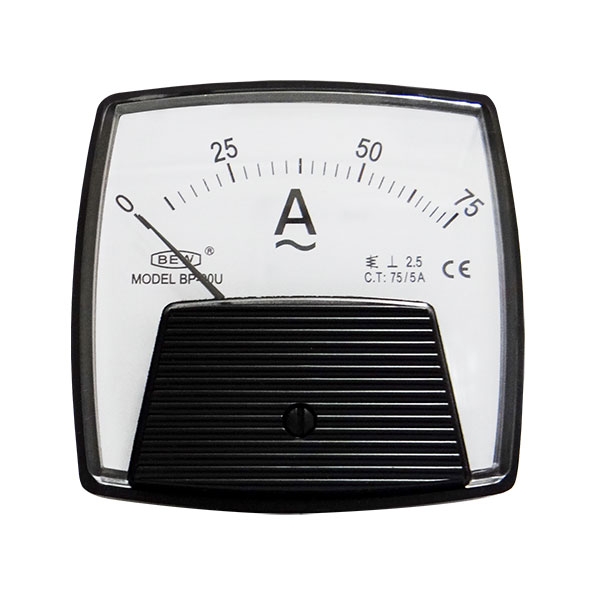

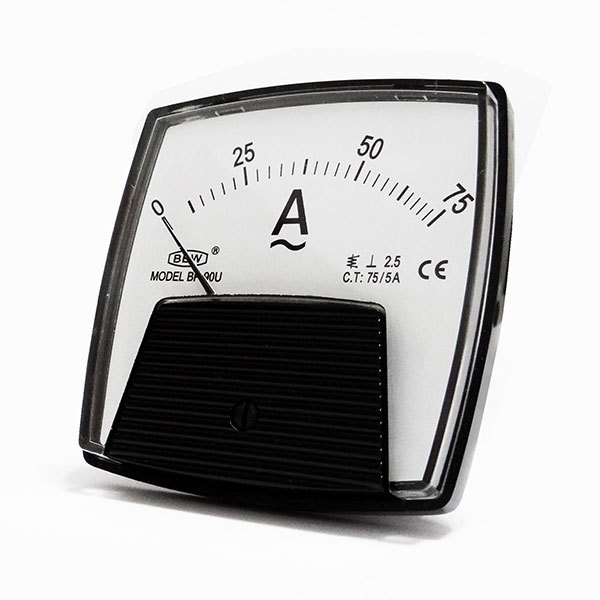

BP-90U AC 75/5A
规格 / 特性：

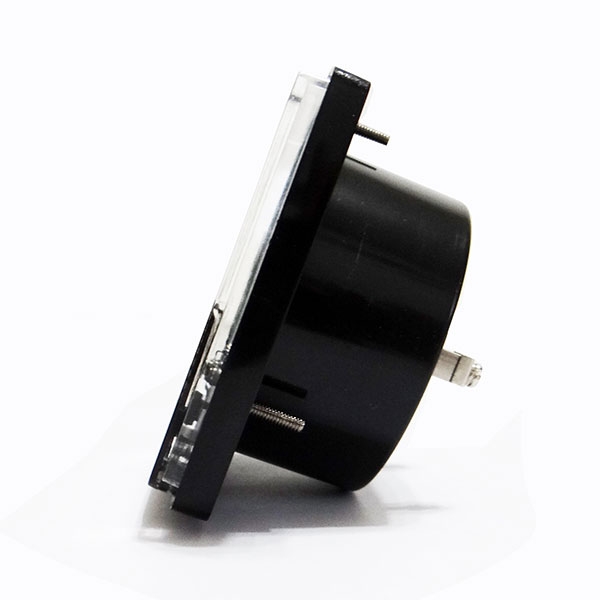

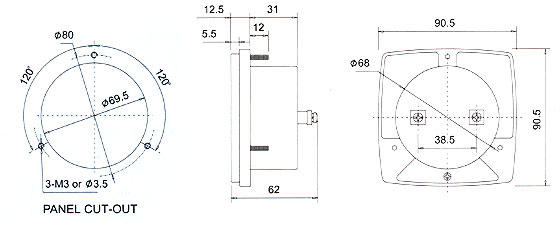

1. Case and composition: Acrylic resin front and bakelite case. Four stud mounting. Three stud mounting for BP-90U.
2. Color: Black case, white scale plate.
3. Pointer: Tube or knif type, colur in black or red.
| 规格 | 內容 |
|---|---|
| Moving coil type | 50 mA ~ 50A DC 3V ~ 750V DC Accuracy: class 1.5, class 2.5 |
| Moving iron type | 50 mA ~ 50A AC 150V ~ 500V AC Accuracy: class 2.5 |
| Rectifier type | 10V ~ 500V AC Accuracy: class 2.5 |
