Panel Meter

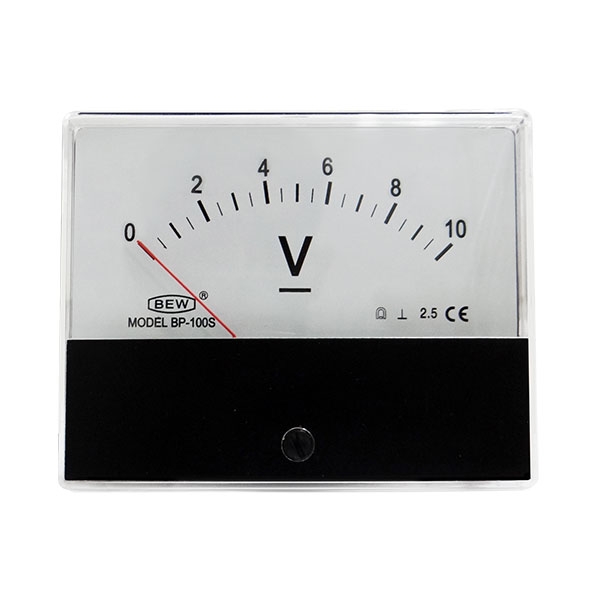

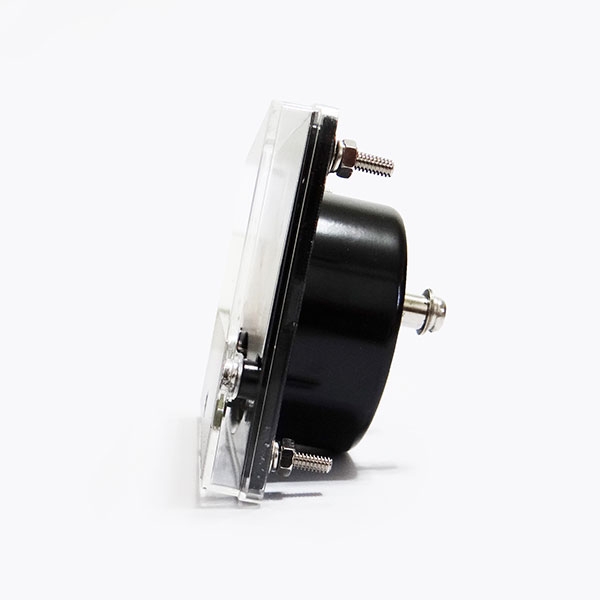

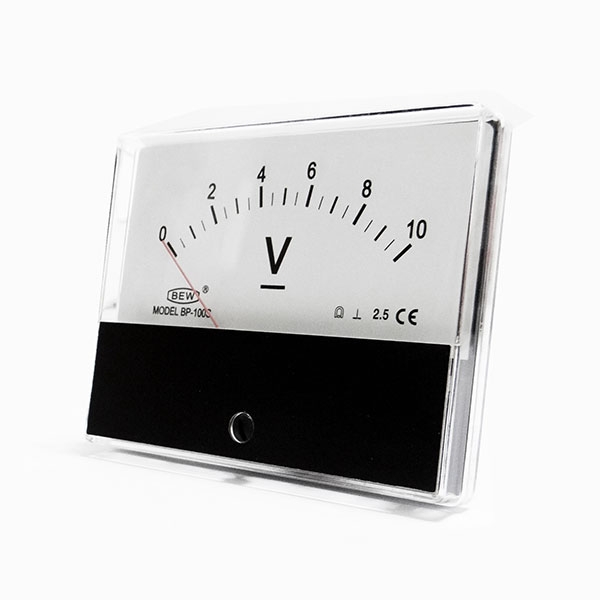

BP-100S DC 10V
规格 / 特性：
| 规格 | 內容 |
|---|---|
| Moving coil type | 50 mA ~ 50A DC 3V ~ 1000V DC Accuracy: class 1.5, class 2.5 |
| Moving iron type | 50 mA ~ 50A AC 150V ~ 500V AC Accuracy: class 2.5 |
| Rectifier type | 3V ~ 500V AC Accuracy: class 2.5 |

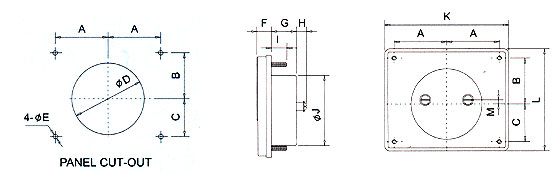

尺寸表(mm)
| 型号 | A | B | C | D | E | F | G | H | I | J | K | L | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BP-120S | 51 | 45 | 37 | 70 | 4.5 | 14 | 24 | 10 | 15 | 69 | 120 | 100 | 4 |
| BP-100S | 41.5 | 36.5 | 27.5 | 65 | 3.5 | 14 | 25 | 11 | 13.5 | 64 | 100 | 80 | 4 |
| BP-670 | 24 | 24 | 24 | 53 | 3.5 | 11 | 25.5 | 10 | 13 | 52.5 | 70 | 60 | 5 |
| BP-45 | 18.9 | 18.9 | 18.9 | 46 | 3.5 | 12 | 23.4 | 10 | 12 | 45 | 52 | 50 | 8 |
