Switchboard Meter

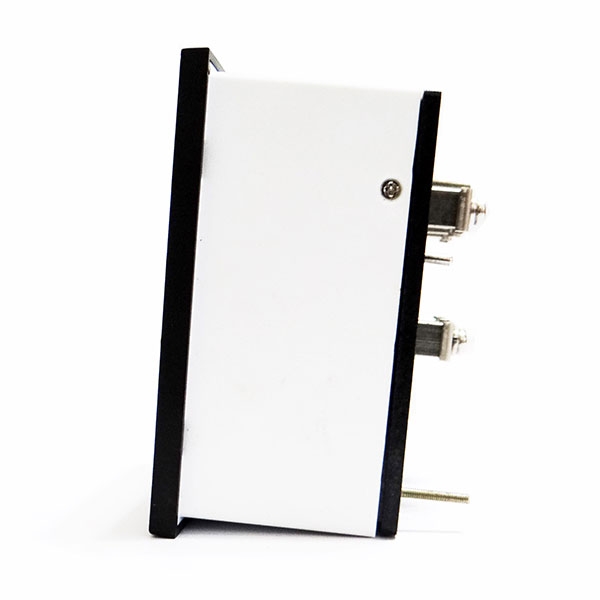

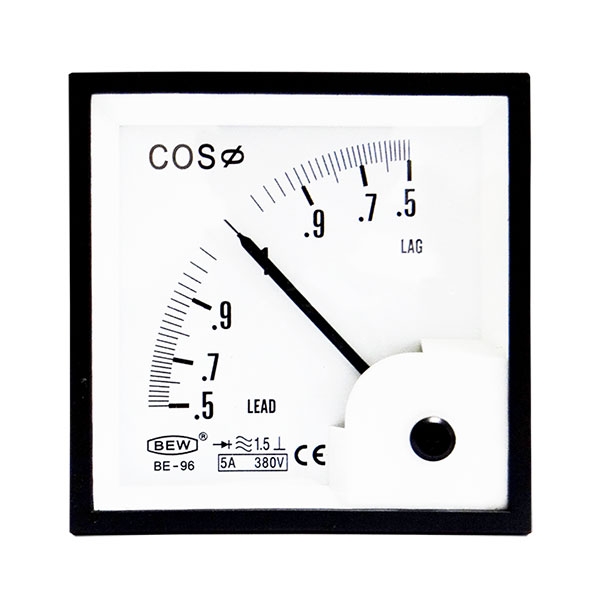

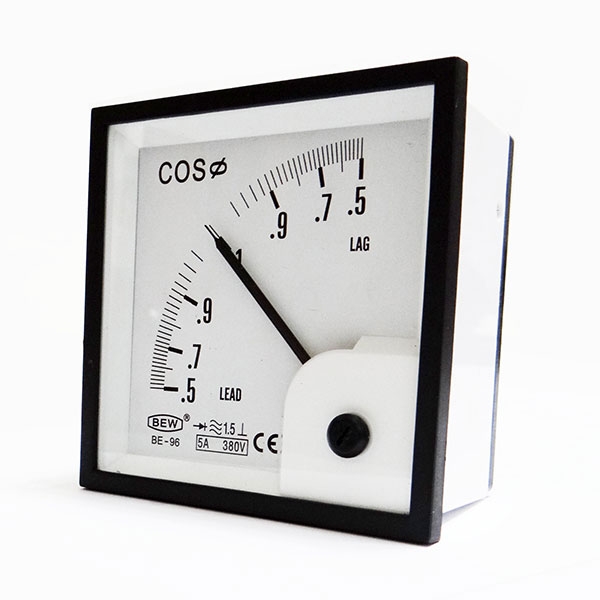

BE-96 COS 5A 380V
规格 / 特性：
1.组成：包括玻璃窗，ABS树脂框架和外壳，PC玻璃纤维基座安装配件。
2.颜色：黑色底座和框架，白色刻度盘和米身。
3.指针：黑色棒状。
BE-96 COSΦ Meter are used for measuring the power factor of AC single and three phase networks. They are alse built primarily in switchboards and electric devices.
| 规格 | 內容 |
|---|---|
| Measuring Range | 380V, 5A |
| Accuracy | Four degrees in phase range. |
| Frequency | 45-65Hz |
| Test Voltage | 2kV, 50-60Hz |
BE系列尺寸表
| 型号 | A | B | C | D | E | F | G | H | I | J | K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BE-120 | 116.5 | 120 | 66.5 | 8 | 44 | 14.5 | 13.5 | 112 | 60 | 22.5 | 8 |
| BE-96 | 91 | 96 | 63.5 | 6 | 44 | 14.5 | 13.5 | 89.5 | 42 | 20.3 | 8 |
| BE-80 | 76 | 80 | 57 | 6 | 36.5 | 14.5 | 13.5 | 75.5 | 24 | 17 | 4 |
| BE-72 | 67.5 | 72 | 55.5 | 6 | 36 | 14.5 | 13.5 | 66 | 23.6 | 10 | 4 |
| BE-48 | 45 | 48 | 55.5 | 6 | 36 | 14.5 | 13.5 | 43.5 | 15 | 10 | 4 |
