计器目录

Switchboard Meter

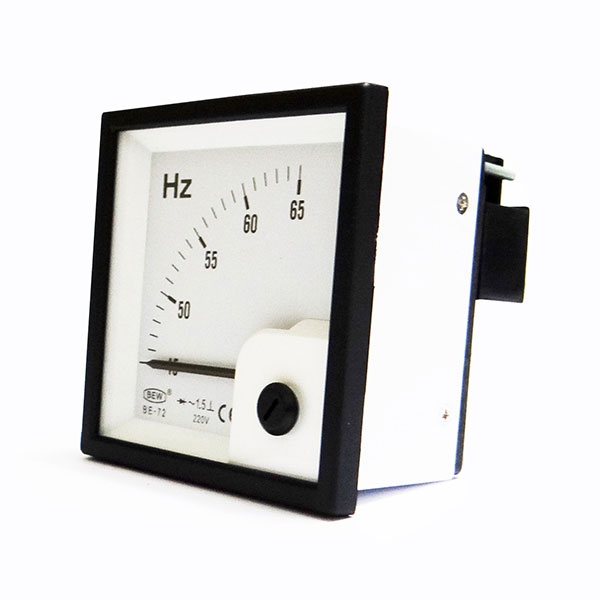

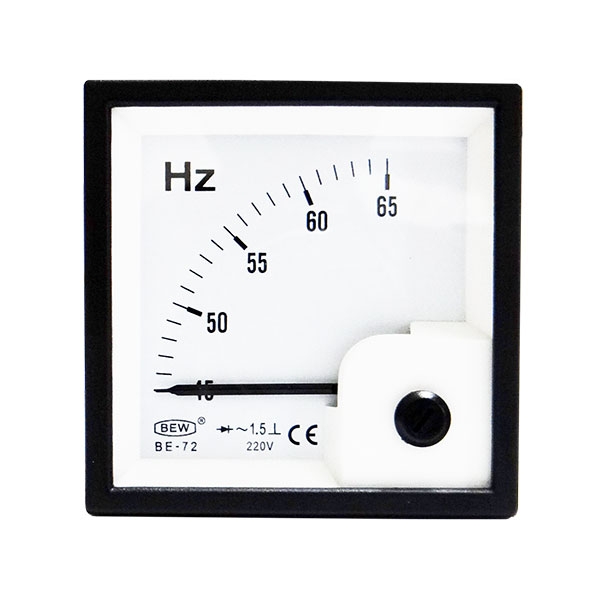

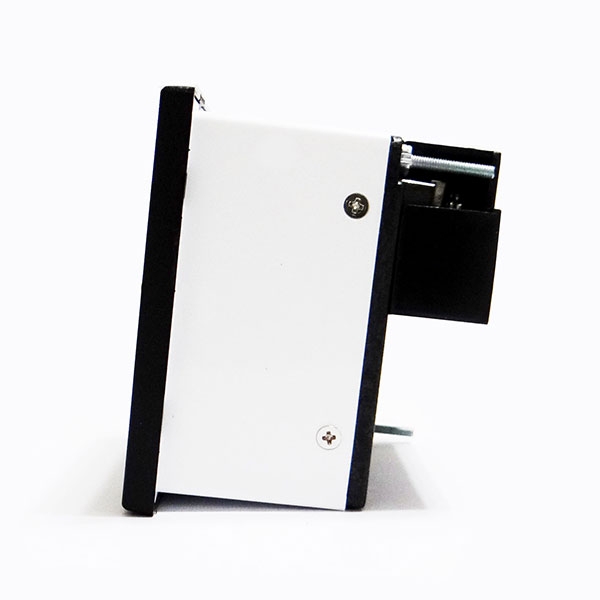

BE-72 45-65Hz 220V Pointer

规格 / 特性:

1.组成:包括玻璃窗,ABS树脂框架和外壳,PC玻璃纤维基座安装配件。
2.颜色:黑色底座和框架,白色刻度盘和米身。
3.指针:黑色棒状。

BE-72 Hz Meter are suitable for frequency measurements of since form AC current networks and can be used in power engineering systems, power plants, switch and test rooms. They can be built in switchboards, measuring desks and electrical equipments.

规格內容
Measuring Range45-65Hz
AccuracyClass 2.5
Rated Voltage220V
Limit of Voltage Fluctuation+-20%
ConsumptionMax. 15mA
Test Voltage2kV, 50Hz

BE系列尺寸表

型号ABCDEFGHIJK
BE-120116.512066.584414.513.51126022.58
BE-96919663.564414.513.589.54220.38
BE-80768057636.514.513.575.524174
BE-7267.57255.563614.513.56623.6104
BE-48454855.563614.513.543.515104
