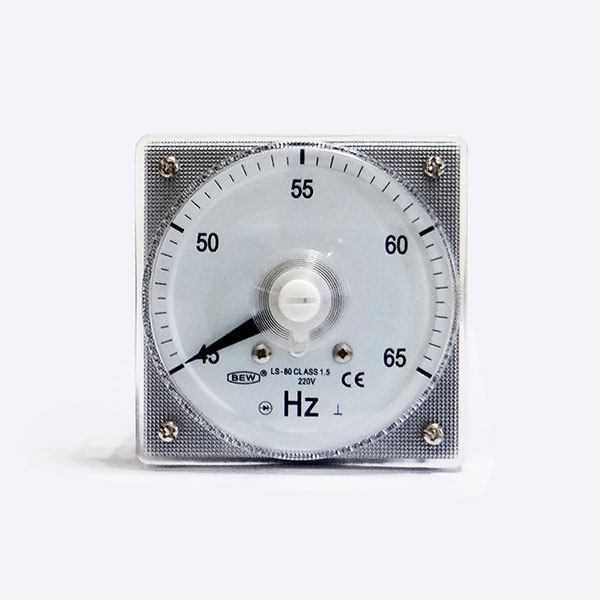

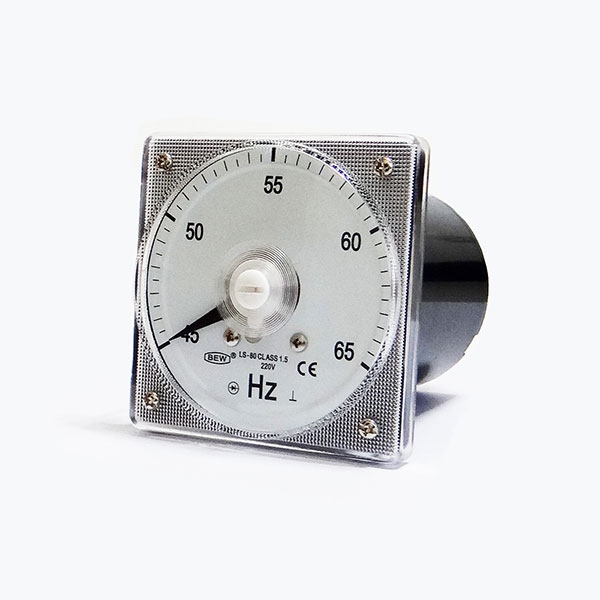

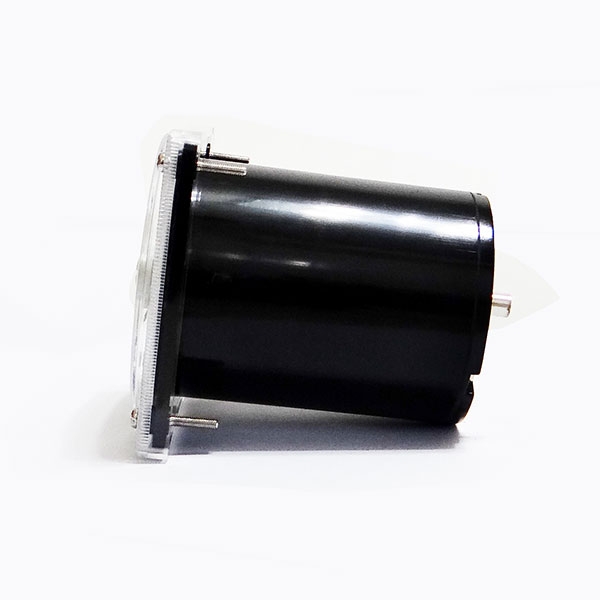

WideAngleScale Instrument

LS-80 45-65HZ 220V

Specifications / Features:

1. Accuracy: class 1.5
2. Case and compostion: Acrylic resin cover, plastic meter body, bakelite terminal plate. Four stud mounting.
3. Colour: White scale plate, black terminal plate, grey meter body.
4. Pointer: Sword type in black colour.
5. Full scale deflection: 250°

General dimension:

Measuring Ranges
Moving Coil Type1mA - 30A DC
30V -300V DC
Rectifier Type1A-5A AC
150V -600V AC

LS-80 Hz: 110V, 220V, 380V, 500V
For a voltage rating higher than above, use an external Potential Transformer with a 110V instrument.
