Current Transformer

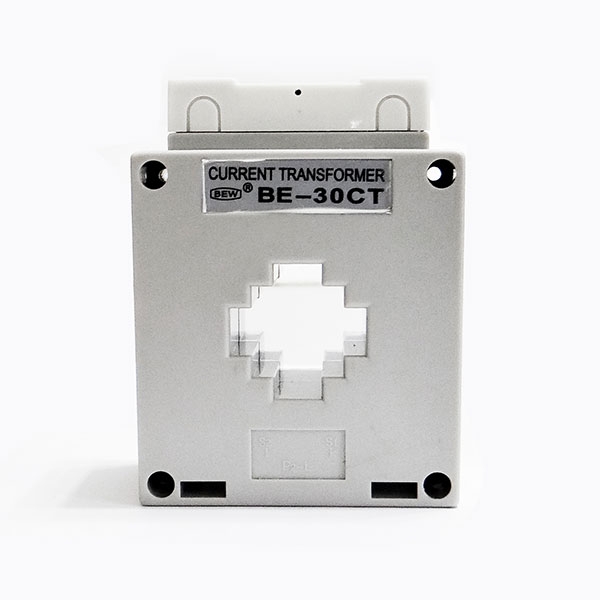

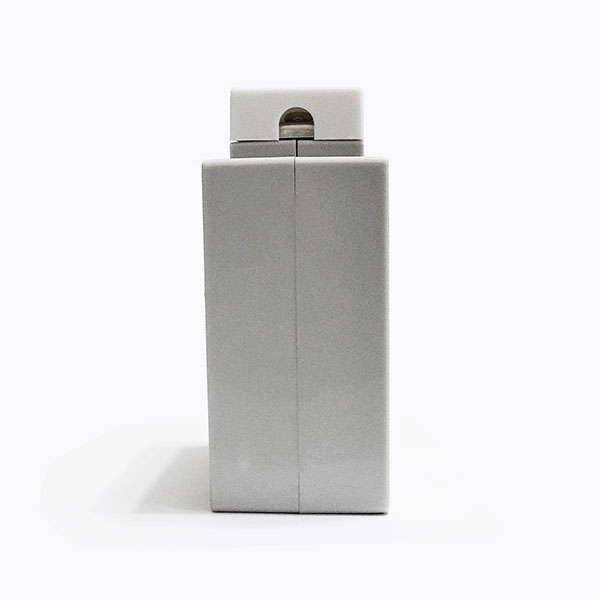

BE-30CT
Specifications/Features :
| Model | BE-30CT |
|---|---|
| Rated Current (A) Primary/Secondary | 30/5 ~ 150/5 |
| Busbar Hole Dimension | 30 x 10 mm |
| Burden (VA) | 2 ~ 3 |
| Accuracy Class | 1.0 |
| Rated Voltage | 600V |
| Rated Frequency | 50/60Hz |
| Weight (kg) | 0.6 |

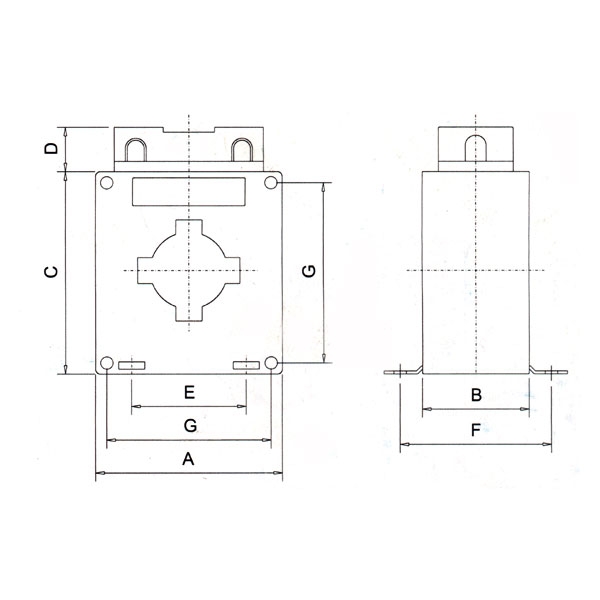

Size Chart(mm)
| Model | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| BE-30CT | 75 | 43 | 82 | 18 | 46 | 54 | 66 |
