Switchboard Meter
BE-96 45-55Hz 220V Vibration
Specifications/Features :
1. Composition: glass window, ABS resin frame and case, PC glass fiber base mounting
fittings included.
2. Colour: black base and frame, white scale plate and meter body.
3. Pointer: stick shape in black
colour.

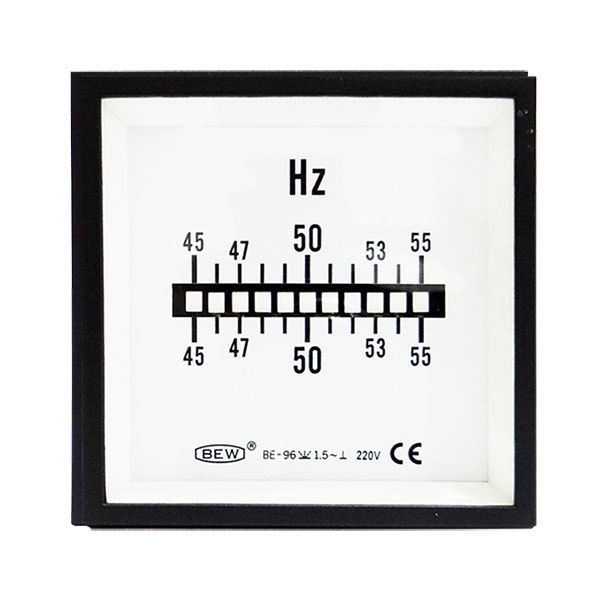

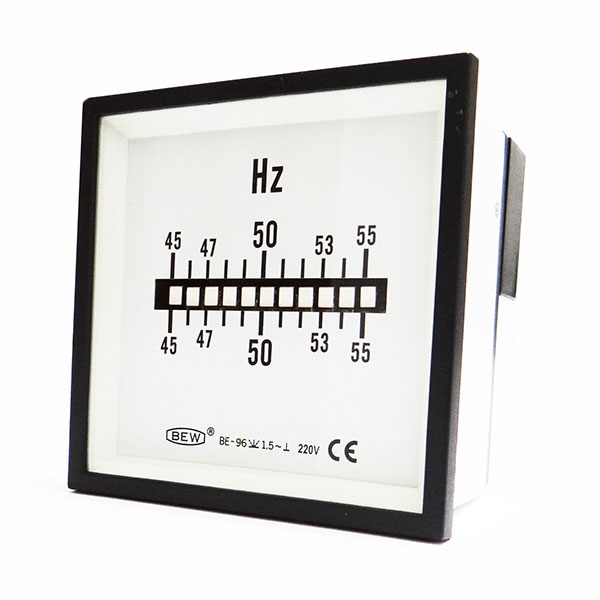

BE-96 Vibrating Hz Meter with one row of horizontal reeds for connection to one main voltage. They can be built in switchboards, measuring desks and electrical equipments. In this meter, frequency is indicated by vibrating reed. Each reed is tuned to a different value in the frequency span, reed frequency meters are suitable for situations where exact values are not required. Readings are unaffected by waveform.
| Specification | Content |
|---|---|
| Measuring Range | 45-55Hz |
| Accuracy | Class 1.5 |
| Rated Voltage | 220V |
| Burdens | 2.5VA max. |
BE series size table
| Model | A | B | C | D | E | F | G | H | I | J | K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BE-120 | 116.5 | 120 | 66.5 | 8 | 44 | 14.5 | 13.5 | 112 | 60 | 22.5 | 8 |
| BE-96 | 91 | 96 | 63.5 | 6 | 44 | 14.5 | 13.5 | 89.5 | 42 | 20.3 | 8 |
| BE-80 | 76 | 80 | 57 | 6 | 36.5 | 14.5 | 13.5 | 75.5 | 24 | 17 | 4 |
| BE-72 | 67.5 | 72 | 55.5 | 6 | 36 | 14.5 | 13.5 | 66 | 23.6 | 10 | 4 |
| BE-48 | 45 | 48 | 55.5 | 6 | 36 | 14.5 | 13.5 | 43.5 | 15 | 10 | 4 |
